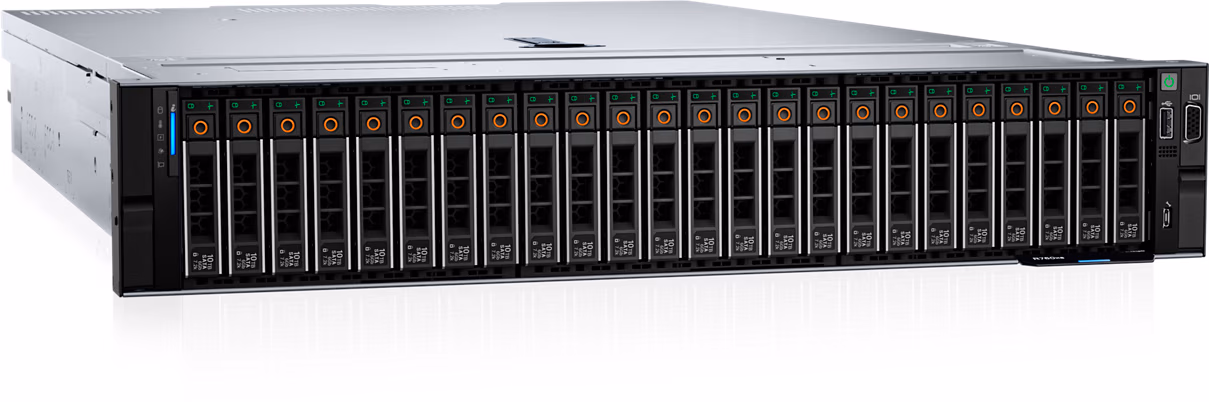

Dell PowerEdge R760xs Rack Server(PER760XS1A – 02)

Processor
Up to two 5th Generation Intel Xeon Scalable processor with up to 28 cores and 4th Generation Intel Xeon Scalable processor with up to 32 cores per processor

Memory
• 16 DDR5 DIMM slots, supports RDIMM 1.5 TB max, speeds up to 5200 MT/s, supports registered ECC DDR5 DIMMs only

Storage controllers
• Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i, HBA465i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 1, 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e; Software RAID: S160

GPU Options
2 x 75 W SW, LP

Drive Bays
Front bays:
• 0 drive bay
• Up to 8 x 3.5-inch SAS/SATA (HDD/SSD) max 192 TB
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 288 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 121.6 TB
• Up to 16 x 2.5-inch (SAS/SATA) + 8 x 2.5-inch (NVMe) (HDD/SSD) max 244.48 TB

Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
(supported only with 12 x 3.5-inch SAS/SATA HDD/SSD configuration)

Hot swap Redundant Power Supplies
• 1800 W Titanium 200—240 VAC or 240 VDC
• 1400 W Titanium 100—240 VAC or 240 VDC
• 1400 W Platinum 100—240 VAC or 240 VDC
• 1400 W Titanium 277 VAC or HVDC (HVDC stands for HighVoltage DC, with 336V DC)
• 1100 W Titanium 100—240 VAC or 240 VDC
• 1100 W -(48V — 60V) DC
• 800 W Platinum 100—240 VAC or 240 VDC
• 700 W Titanium 200—240 VAC or 240 VDC
• 600 W Platinum 100—240 VAC or 240 VDC

Cooling Options
• Air cooling

Fans
• Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans, Up to 6 hot swappable fans

Dimensions and Weight
• Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 707.78 mm (27.85 inches) – without bezel
721.62 mm (28.4 inches) – with bezel
• Weight – Max 28.6 kg (63.0 lbs.)

Form Factor
2U rack server

Embedded Management
• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module

Bezel
Optional LCD bezel or security bezel

OpenManage Software
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin

Mobility
OpenManage Mobile

OpenManage Integrations
• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager

Security
• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Embedded NIC
2 x 1 GbE LOM

Network options
1 x OCP card 3.0 (optional)

Ports
Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Internal Ports:
• 1 x USB 3.0 (optional)

Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial (optional)

PCIe
• 1 CPU Configuration: Up to 4 PCIe slots (2 x8 Gen5, 1 x16 Gen4, 1 x8 Gen4)
• 2 CPU configuration: Up to 6 PCIe slots (2 x16 Gen5, 3 x16 Gen4, 1 x8 Gen4)

Operating System and Hypervisors
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
• Canonical Ubuntu Server LTS
