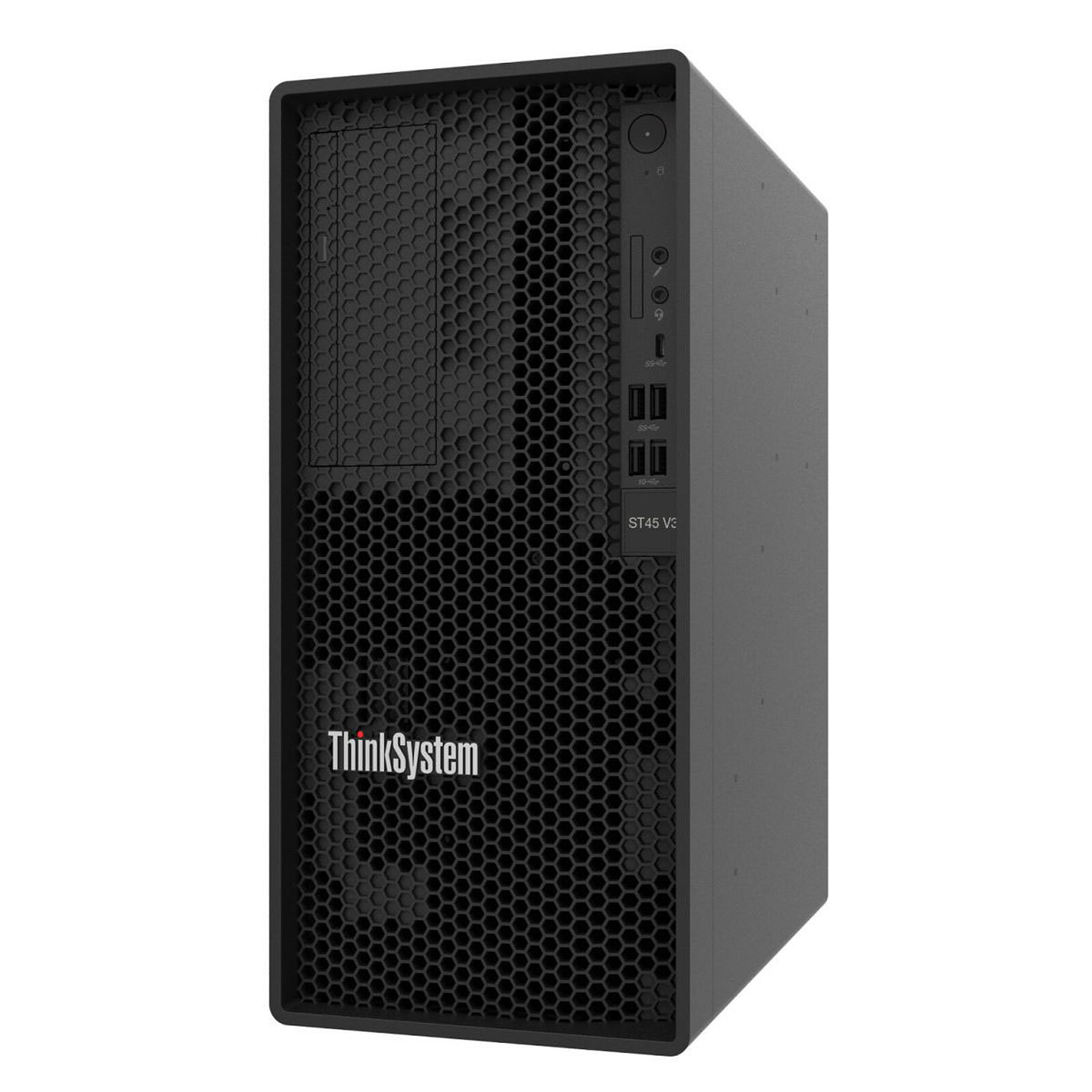

Lenovo ThinkSystem ST45 V3 Server (7DH5A00SEA) – AMD EPYC 4124P, 16GB RAM, 2TB HDD

KSh 170,000.00

Model: Lenovo ThinkSystem ST45 V3
Part Number: 7DH5A00SEA

Processor:
AMD EPYC 4124P
4 Cores, 3.8GHz, 16MB Cache, 65W

Memory:
16GB RAM (1 × 16GB)

Storage:
2 × 1TB SATA HDD

RAID Controller:
None (No RAID)

Power Supply:
500W PSU, 94% Efficiency

Optical Drive:
Not included (No DVD)

Form Factor:
Tower Server

Warranty:
3 Years

Machine type	7DH4 - 1 year warranty 7DH5 - 3 year warranty
Form factor	Tower
Processor	One AMD processor. Choose from: AMD EPYC 4005 CPU Support up to 65W with 16 cores, with core speeds up to 3.9 GHz
Chipset	AMD PRO 665 chipset (PROM21)
Memory	Two DIMM sockets supporting Lenovo TruDDR5 DIMMs at 5600 MHz. Support ECC UDIMMs.
Memory maximums	Up to 64 GB using 2x 32 GB UDIMMs.
Memory protection	Error-correcting code (ECC)
Disk drive bays	Up to 4x non-hot swap (NHS) drive bays: 2 or 3x 3.5-inch NHS drive bays supporting HDDs or SSDs 1x 2.5-inch NHS drive bay supporting an SSD The server can be configured with HDDs or SSDs. The server also supports 2x NVMe M.2 drive installed in a socket on the system board as a boot drive.
Maximum internal storage	3.5-inch drives: 24TB using 3x 8TB 7.2K SATA 6Gb Non-Hot Swap 512e HDDs 2.5-inch drives: 3.84TB using 1x 3.84TB Read Intensive SATA 6Gb NHS SSDs HDDs and SSDs can be installed in the same server but are not supported in the same RAID volume
Storage controller	AMD PRO 665 OB SW RAID Optional hardware RAID
Optical drive	Optional slim DVD-RW drive in dedicated bay.
Network interfaces	One integrated Gigabit Ethernet 1000BASE-T port (RJ-45), Realtek RTL8111FP.
PCI Expansion slots	Two PCIe slots as follows: Slot 1: PCIe 3.0 x16 full-height half-length (FHHL) (75W) Slot 3: PCIe 3.0 x1 full-height half-length (FHHL) (25W)
Ports	Front ports: Five USB ports 1x USB 3 (5 Gb/s) with USB-C connector 4x USB 3 (5 Gb/s) with USB-A connector Microphone port* Headset port* Rear ports: Four USB 2.0 ports Two DisplayPort 1.4 video ports One HDMI 2.1 One RJ-45 Gigabit Ethernet port One audio line-out port* * Windows 11 only; some line noise is possible
Audio	Mono amplifier (speaker) mounted on the inside of the front bezel; Audio line-out port at the rear of the server; microphone and headset ports at the front of the server
Cooling	Two fixed system fans. One CPU heat sink fan. Supports ASHRAE A2 environments.
Power supply	Model dependent choices One fixed 300W Gold power supply One fixed 500W Platinum power supply: Energy Star and ErP Lot 9 compliant.
Hot-swap parts	None
Systems management	Power and drive activity LEDs. Supports Lenovo XClarity Provisioning Manager Lite (USB memory key-based) for system setup and firmware upgrades. No support for XClarity Controller (XCC).
Security features	Power-on password, administrator's password, Trusted Platform Module (TPM), supporting TPM 2.0. Padlock loop and Kensington cable slot for physical security.
Video	Two DisplayPort ports and native HDMI support resolution (4K) at a refresh rate of 60Hz.
Operating systems supported	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE, Ubuntu, Windows 11 tested. See the Operating system support section for specifics.
Limited warranty	Three-year or one-year (model dependent) customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Service and support	Optional service upgrades are available through Lenovo Services: 4-hour or 2-hour response time, 6-hour fix time, 1-year or 2-year warranty extension, software support for Lenovo hardware and some third-party applications.
Dimensions	Width: 170 mm (6.7 in.), height: 376 mm (14.8 in.), depth: 316 mm (12.4 in.). See Physical and electrical specifications for details.
Weight	Maximum: 8.56 kg (18.90 lb)
